제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: LNK-HDE-60KVM
문서: E-link 60M 1080P HDMI KVM E....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7~10 일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 100000 PC / 달
Operating Temperature:: |
-5℃ ~ +70℃ |
Power supply: |
DC 12V |
Size(L-W-H): |
82*85*17mm |
보증: |
1년 무료 보증 |
UTP 전송 거리: |
CAT6 최대 60m |
해결: |
맥스 : 1920x1080@60Hz (뒤로 호환) |
Operating Temperature:: |
-5℃ ~ +70℃ |
Power supply: |
DC 12V |
Size(L-W-H): |
82*85*17mm |
보증: |
1년 무료 보증 |
UTP 전송 거리: |
CAT6 최대 60m |
해결: |
맥스 : 1920x1080@60Hz (뒤로 호환) |
Product Advantages
· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type is more convenient;
· Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
· Support video resolution up to 1920*1080@60Hz, 3D signals;
· Support keyboard and mouse remoter control;
· Support local HDMI loop-out;
· Build-in EDID function, can match many kinds display device;
· Support POC unilateral power supply, need 1pc 12V power to TX
· Compliance with HDMI 1.3 and HDCP 1.3 standard;
Overview

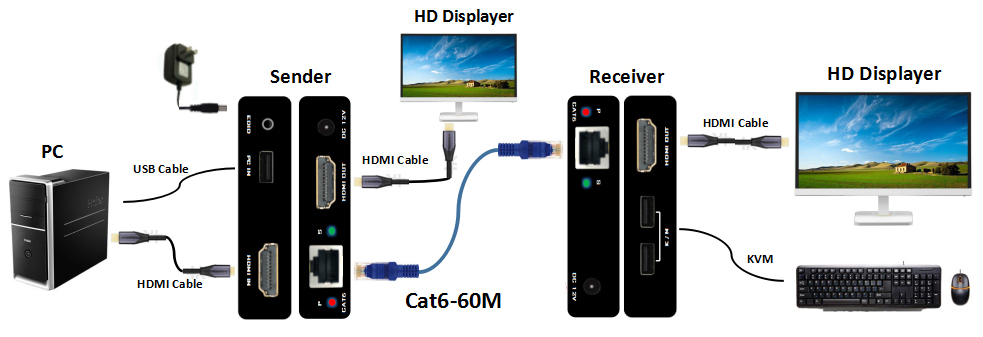

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the receiver
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3, HDCP 1.3 |
|
Maximum Pixel Clock |
165MHz |
|
|
Max Data Rate |
6.75Gbps |
|
|
Resolution |
Max: 1920X1080@60Hz(backward-compatible) |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
USB |
Interface |
PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional) |
|
USB Signal |
HID Signal |
|
|
UTP |
Interface |
RJ45 |
|
Transmission Distance |
CAT6 Max: 60m |
|
|
Other |
Power Supply |
DC 12V |
|
Power Dissipation |
Max: 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
82*85*17mm |
|
|
The warranty |
1 Year Free Warranty |
|
Ordering Information
|
Part No |
Description of product |
|
LNK-HDE-60KVM |
60M 1080P HDMI KVM Extender With Loop-out |
