제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: LNK-HDE-60
문서: E-link 60M HDMI Extender ov....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7~10 일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 100000 PC / 달
Operating Temperature:: |
-5℃ ~ +70℃ |
Power supply: |
DC 12V |
Size(L-W-H): |
79*43*23mm |
보증: |
1년 무료 보증 |
전력 소산: |
맥스 3W |
최대 데이터 속도: |
6.75Gbps |
Operating Temperature:: |
-5℃ ~ +70℃ |
Power supply: |
DC 12V |
Size(L-W-H): |
79*43*23mm |
보증: |
1년 무료 보증 |
전력 소산: |
맥스 3W |
최대 데이터 속도: |
6.75Gbps |
Product Advantages
· Uncompressed and zero latency
· Auto adjustment to match the cable length
· The highest resolutions supported is up to 1080P@60Hz
· Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m
· Support EDID pass-through for smart match between the source device and display device
· Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable
Overview

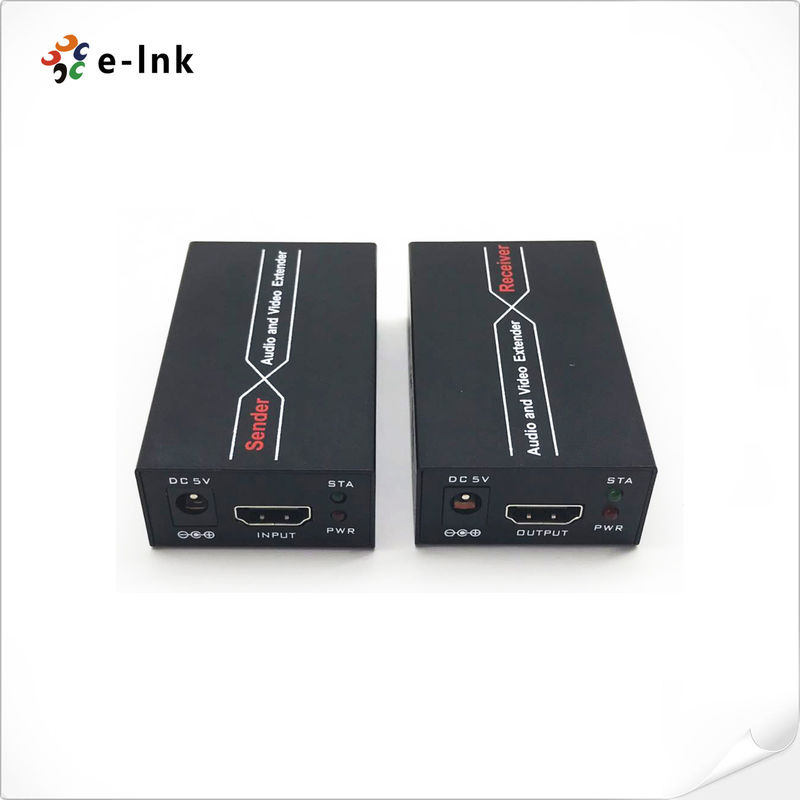

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.
Technical Indexes
|
Parameter |
Description |
|
|
Video
|
Standards |
HDMI 1.3; HDCP 1.3 |
|
Maximum pixel clock |
165MHz Digital |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
3D:1080p@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz, |
|
|
HDMI |
Impedance |
100Ω |
|
Connector |
HDMI-A |
|
|
HDMI cable |
Less than 5m at 1080p@60hz |
|
|
RJ45 |
Interface |
RJ45 |
|
Transmission distance |
CAT6/7--- 60m at 1080p@60hz |
|
|
Network cable |
Low resistance and consumption oxygen-free copper core (CAT6,CAT6A,CAT7)-UTP |
|
|
Other |
Power supply |
The power adapter: DC 5V/1A |
|
Power dissipation |
MAX 3W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
79*43*23mm |
|
|
The warranty |
1 year free warranty |
|
Ordering Information
|
Part No |
Description of product |
|
LNK-HDE-60 |
60M 1080P@60Hz HDMI Extender over cat6 with POC Function |
