제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: LNK-HDE-120KVM
문서: E-link 120M 1080P HDMI KVM ....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7~10 일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 100000 PC / 달
작동 온도 :: |
-5 ℃ ~ +70 ℃ |
전원 공급 장치: |
전력 어댑터 : DC 5V |
사이즈(l-w-h): |
100*97.5*17mm |
보증: |
1년 무료 보증 |
전력 소산: |
최대 4W |
최대 데이터 속도: |
6.75Gbps |
작동 온도 :: |
-5 ℃ ~ +70 ℃ |
전원 공급 장치: |
전력 어댑터 : DC 5V |
사이즈(l-w-h): |
100*97.5*17mm |
보증: |
1년 무료 보증 |
전력 소산: |
최대 4W |
최대 데이터 속도: |
6.75Gbps |
Product Advantages
· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference; Wall-mounted type is more convenient.
· Distance up to 120m over UTP CAT5E/6 cable.
· Video resolution max up to 1920*1080@60Hz.
· Support keyboard and mouse control .
· Have a local HDMI loop-out ;
· Support IR(38khz) signal pass back transmission .
· HDMI 1.3 and HDCP 1.2 standard.
· High compatibility, can auto-match source and display device.
· Built-in automatic adjustment system, make the image smooth, clear and stable.
Overview

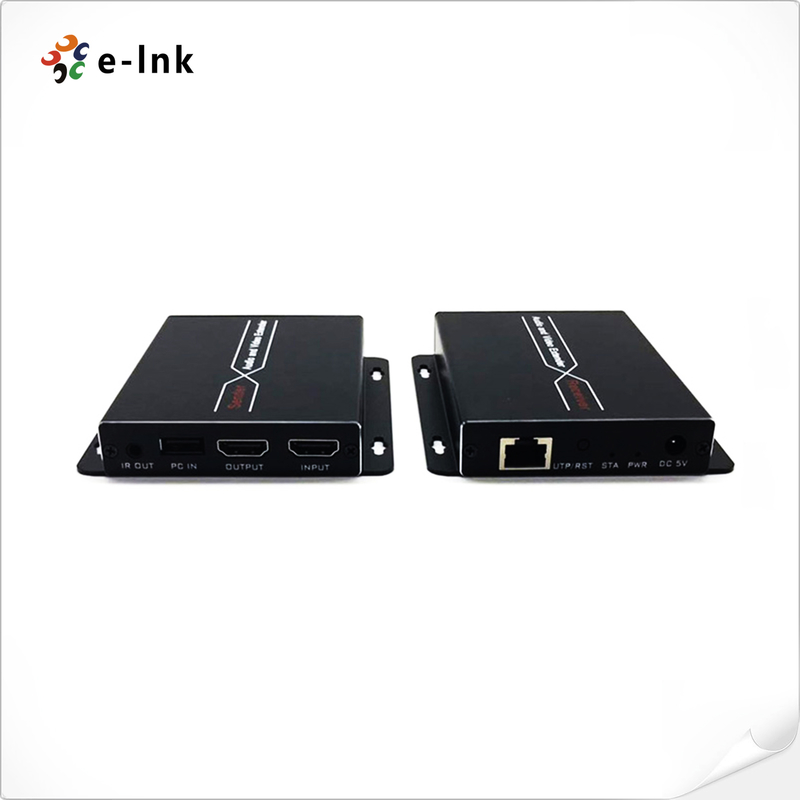

This HDMI KVM Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. It supports keyboard & mouse remote control and local loop-out. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
Max: 1920X1080@60Hz(backward-compatible) |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
IR |
Interface |
3.5mm earphone seat |
|
Signal direction |
Unidirectional |
|
|
Signal type |
Digital |
|
|
IR frequency |
38kHz |
|
|
USB |
Interface |
PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional) |
|
USB Signal |
HID Signal |
|
|
Ethernet |
Interface |
RJ45(568B) |
|
Transmission distance |
UTP CAT5e/---120m |
|
|
Other |
Power supply |
The power adapter: DC 5V |
|
Power dissipation |
MAX 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
100*97.5*17mm |
|
|
The warranty |
1 year free warranty |
|
Ordering Information
|
Part No |
Description of product |
|
LNK-HDE-120KVM |
120M 1080P@60Hz HDMI KVM Extender Over TCP/IP |
