제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: LNK-HDE-120
문서: E-link LNK-HDE-120 HDMI Ext....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7~10 일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 100000 PC / 달
작동 온도 :: |
-5 ℃ ~ +70 ℃ |
Power supply: |
The power adapter: DC 5V |
The warranty: |
1 Year Free Warranty |
전력 소산: |
최대 4W |
차원: |
100*97.5*17mm |
전송거리: |
UTP CAT5E --- 120m |
작동 온도 :: |
-5 ℃ ~ +70 ℃ |
Power supply: |
The power adapter: DC 5V |
The warranty: |
1 Year Free Warranty |
전력 소산: |
최대 4W |
차원: |
100*97.5*17mm |
전송거리: |
UTP CAT5E --- 120m |
Product Advantages
► Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type
► Uncompressed and zero latency
► Auto adjustment to match the cable length
► The highest resolutions supported is up to 1080P@60Hz
► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m
► Support EDID pass-through
► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.
Overview
This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution |
Max: 1920X1080@60Hz |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
IR |
Interface |
3.5mm earphone seat |
|
Signal direction |
Unidirectional |
|
|
Signal type |
Digital |
|
|
IR frequency |
38kHz |
|
|
Ethernet |
Interface |
RJ45(568B) |
|
Transmission distance |
UTP CAT5e---120m |
|
|
Other |
Power supply |
The power adapter: DC 5V |
|
Power dissipation |
MAX 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
100*97.5*17mm |
|
|
The warranty |
1 year free warranty |
|
Ordering Information
|
Part No |
Description of product |
|

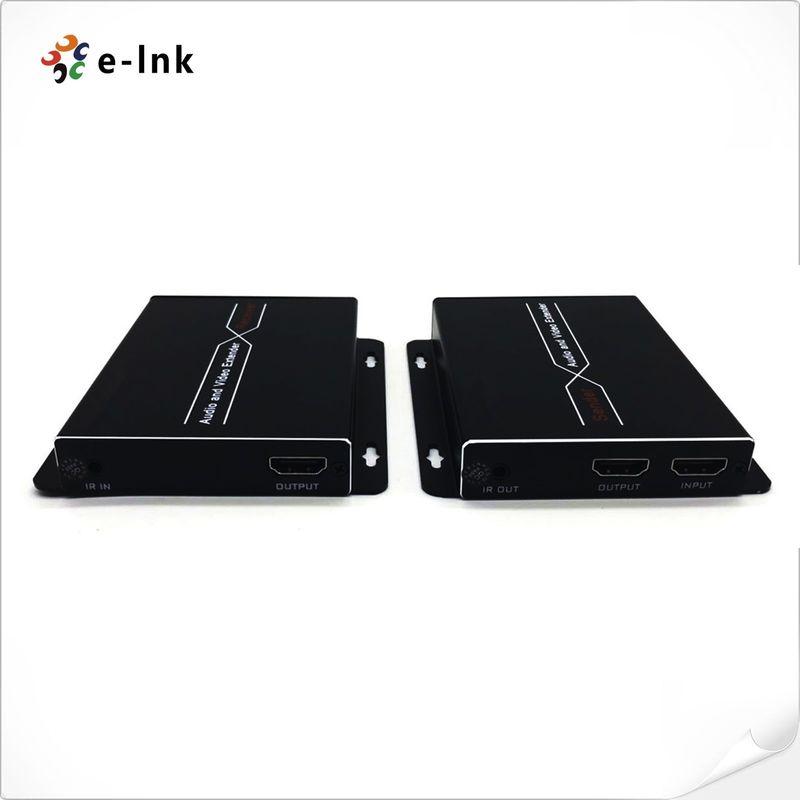

LNK-HDE-120 |
HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m), including 1 Transmitter & 1 Receiver, used by pairs |
