제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: SDI에서 HDMI 변환기
문서: E-link 3G-SDI to HDMI Conve....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7~10 일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 100000 PC / 달
작동 온도 :: |
-40℃ ~ +70℃ |
전원 공급 장치: |
DC5V/1A |
전력 소산: |
최대 4W |
차원: |
98.5 Ｘ 85 Ｘ 31 밀리미터 |
작동 온도 :: |
-40℃ ~ +70℃ |
전원 공급 장치: |
DC5V/1A |
전력 소산: |
최대 4W |
차원: |
98.5 Ｘ 85 Ｘ 31 밀리미터 |

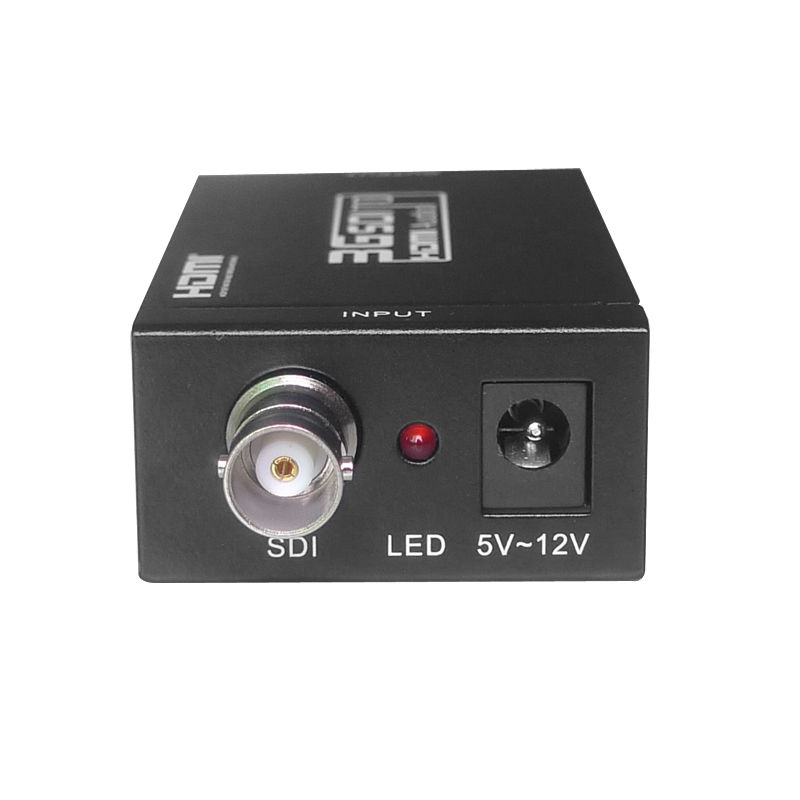

3G-SDI to HDMI Converter
Product Advantages
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Equalized and re-clocked loop output• Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
Overview
The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.
Technical Indexes
|
Parameter |
Specifications |
|
Input Port |
1 x BNC (SDI/HD-SDI/3G-SDI) |
|
Output Port |
1 x HDMI |
|
SMPTE Standard |
425M Level A & B, 424M, 292M, 259M-C |
|
SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
|
In/Output Resolution |
480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30 |
|
HDMI input/output connect |
HDMI type A 19Pin |
|
Link Connector |
BNC Shielded |
|
Power Adapter |
DC5V/1A |
|
Operating temperature range |
-40℃ to +70℃ |
|
Operating humidity range |
5 to 90% RH (no condensation) |
|
Shippingweight |
0.15 KGS |
|
Dimensions( L x W x H) |
98.5 x 85 x 31mm |
