제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
모델 번호: LNK-HDMI 시리즈
문서: E-link LNK-HDMI Series HDMI...d).pdf
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 통 패키징
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
RS 232 Data bits: |
8 bits |
Device size: |
109.5*152*29.3mm(length*width*height) |
Fiber port: |
LC |
Fiber module: |
SFP single mode |
Fiber wavelength: |
1550/1310nm |
Fiber band width: |
3Gbps |
RS 232 Data bits: |
8 bits |
Device size: |
109.5*152*29.3mm(length*width*height) |
Fiber port: |
LC |
Fiber module: |
SFP single mode |
Fiber wavelength: |
1550/1310nm |
Fiber band width: |
3Gbps |
Advantages
► Full digital, Uncompressed HD optical fiber transmission
► Support Full HD 1920*1200@60Hz
► The attenuation of optical module SFP low to -3db
► 1 channel analog audio(3.5mm)
► Support HDMI 1.3b Protocal
► Support KVM
► Automatic identification and configure display mode
► Automatic equalization inside, stable and clear graphics.
► ESD protection circuit inside, to ensure the ESD damage.
► Easily to installation, plug and play, no need to set up
Overview

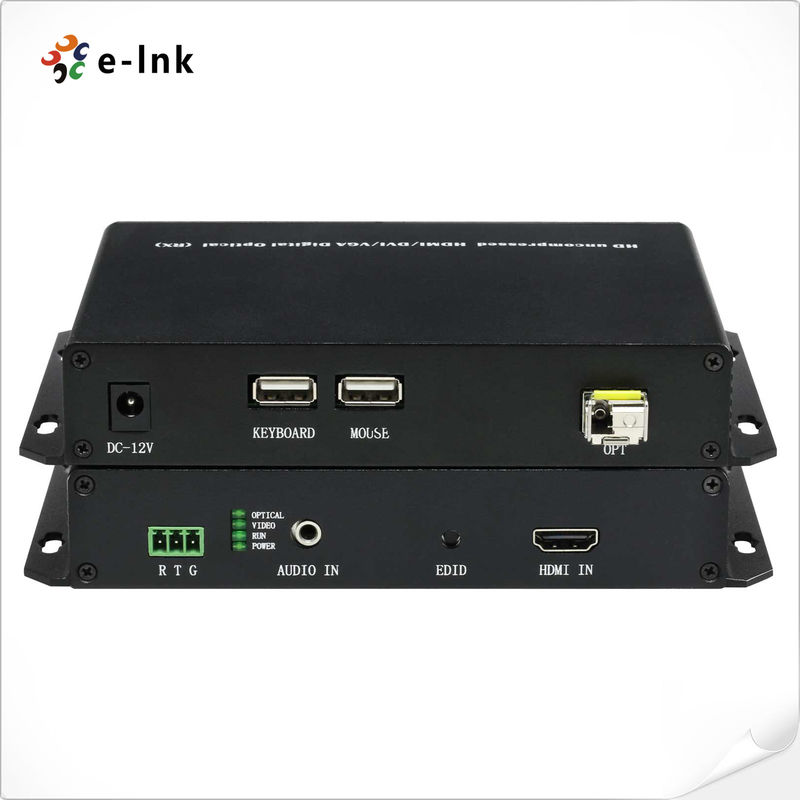

The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.
Order Information
|
Item |
Description |
|
LNK-HDMI-100 |
HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
|
HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HDMI-400 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HDMI-800 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
Application
