제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
모델 번호: LNK-H4K100
문서: E-link LNK-H4K100 4K HDMI F...d).pdf
지불 및 배송 조건
최소 주문 수량: 1 개 PC
가격: 협상 가능
포장 세부 사항: 상자 포장
배달 시간: 3-12 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 1000 PCS/월
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V/2A |
Interface bandwidth: |
10Gbps |
Wavelength: |
Multi-mode 850nm / Single-mode 1310nm(optional) |
Fiber type: |
Single-mode or Multimode |
Interface: |
SFP model – LC connector |
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V/2A |
Interface bandwidth: |
10Gbps |
Wavelength: |
Multi-mode 850nm / Single-mode 1310nm(optional) |
Fiber type: |
Single-mode or Multimode |
Interface: |
SFP model – LC connector |
Advantages
► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
► Support video resolution up to 3840*2160@30Hz, 3D signal;
► Compliance with HMDI 1.4 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

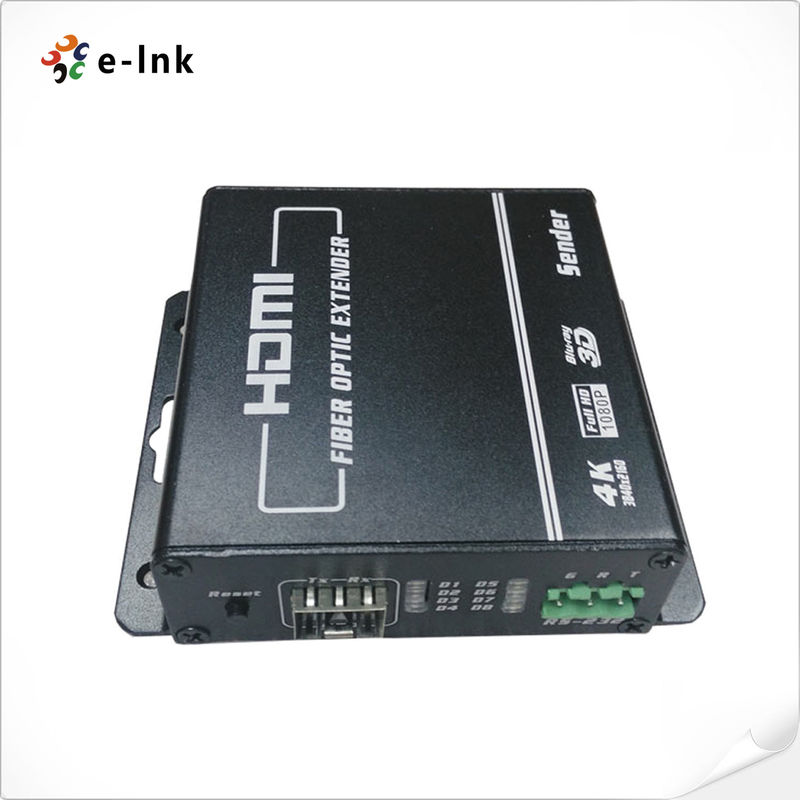

The LNK-H4K100 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.4; HDCP 1.2 |
|
Maximum pixel clock |
340MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution range |
Up to 3840*2160@30Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
|
Interface |
SFP model – LC connector |
|
Fiber type |
Multi-mode / single-mode (optional) |
|
|
Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
Max 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
104*89*28mm |
|
Order Information
|
Item |
Description |
|
LNK-H4K100 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs |
|
|
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-H4K100S-40 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs |
Application
