제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-HDMI 시리즈
지불 및 배송 조건
최소 주문 수량: 1 개 PC
가격: 협상 가능
포장 세부 사항: 익스텐더 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 1000 PCS/월
키워드: |
광섬유 익스텐더 |
작동 온도: |
-10°C ~ +55°C |
전원 공급 장치: |
전력 어댑터 : DC 5V |
전력 소산: |
최대 5W |
차원 (LxWxH): |
163 Ｘ 86 Ｘ 24(mm) |
총 체중: |
1.471KG |
키워드: |
광섬유 익스텐더 |
작동 온도: |
-10°C ~ +55°C |
전원 공급 장치: |
전력 어댑터 : DC 5V |
전력 소산: |
최대 5W |
차원 (LxWxH): |
163 Ｘ 86 Ｘ 24(mm) |
총 체중: |
1.471KG |
► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF
► Support keyboard and mouse signal transmission
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit
► Supports HDCP 2.2
► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
► Simple to install, plug and play

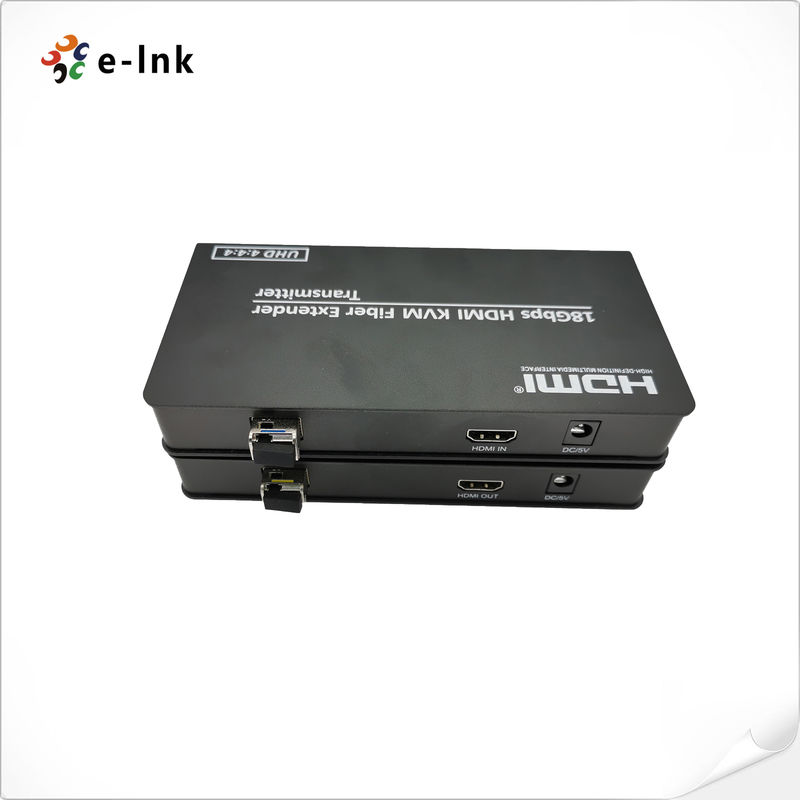

LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two modules that are interconnected by means of single-mode or multimode fiber optic cable. It allows working at a maximum resolution of 4K HDMI video. The maximum cable distance can be up to 10 km via Single Mode Fiber or 300 meters via OM3 Multimode Fiber.
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 2.0 and HDCP 2.2 |
|
|
Maximum pixel clock |
600MHz |
|
|
Maximum data rate |
18Gbps |
|
|
Resolution range |
800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
K/M |
Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
|
Optical fiber |
Interface |
SFP model – LC connector |
|
|
Fiber type |
Single-mode or Multimode |
|
|
Wavelength |
Single-mode 1310nm, Multimode 850nm |
|
|
Interface bandwidth |
18Gbps |
|
|
Transmission distance |
OM3 Multimode fiber: 300M Single mode fiber: 10KM |
|
Model |
Description |
|
LNK-HF201KM-M |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters |
|
LNK-HF201KM-10 |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km |
