제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: LNK-DTS050-T
문서: E-link HD-SDI Video Extende....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7-10 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 100000pcs/월
작동 온도 :: |
-10 ° C ~ 60 ° C / 14 ° F ~ 140 ° F |
전원 공급 장치: |
DC12V/1A |
전력 소비: |
2.5W (TX 및 RX) |
차원: |
98 x 65 x 28mm / 3.85 x 2.55 x 1.1 인치 |
표준 지원: |
SMPTE 259M (270Mb/s), SMPTE 292M |
속도: |
270Mb/s, 1.485Gb/s (자동 선택) |
작동 온도 :: |
-10 ° C ~ 60 ° C / 14 ° F ~ 140 ° F |
전원 공급 장치: |
DC12V/1A |
전력 소비: |
2.5W (TX 및 RX) |
차원: |
98 x 65 x 28mm / 3.85 x 2.55 x 1.1 인치 |
표준 지원: |
SMPTE 259M (270Mb/s), SMPTE 292M |
속도: |
270Mb/s, 1.485Gb/s (자동 선택) |
Product Advantages
· SDI Standard: HD-SDI, SD-SDI
· Up to 50m / 160ft via CAT5e cable
· Up to 60m / 200ft via CAT6 cable
· Supports SDI-SMPTE 259M-C (270Mbps);
· HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
· LED diagnostics: sync, SDI auto-detection
· 5V~12V DC
Overview

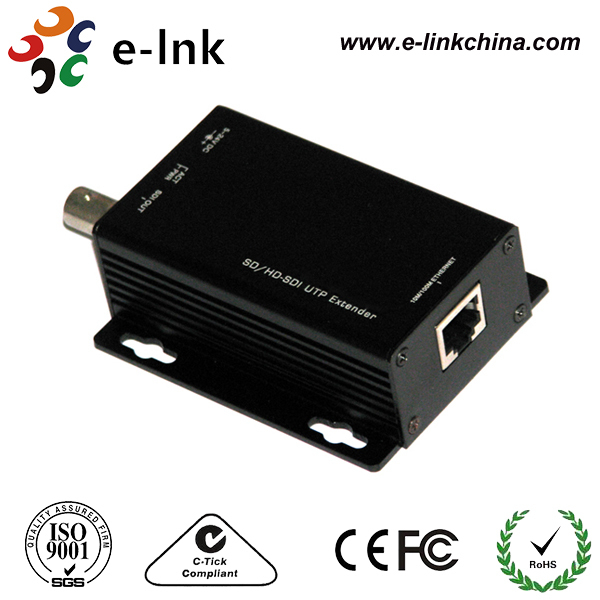

LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.
Technical Indexes
|
Model |
LNK-DTS050 |
|
|
Type |
Transmitter |
Receiver |
|
Standard Supported |
SMPTE 259M (270Mb/s), SMPTE 292M |
|
|
Speed |
270Mb/s, 1.485Gb/s (automatic selection) |
|
|
Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz |
|
|
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz |
||
|
720p @ 50Hz / 59.94Hz / 60Hz |
||
|
1080i @ 50Hz / 59.94Hz / 60Hz |
||
|
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz |
||
|
@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz |
||
|
Indicators |
Power on (on both end) |
|
|
Sync detection (on both end) |
||
|
Link between the two units working (on both end) |
||
|
Connectors |
1x BNC 75 ohm female |
|
|
1x RJ45 of CAT5e/6 unshielded or shielded twisted pair |
||
|
1x power plug, 2.1mm |
||
|
Maximum Distance |
All resolutions |
|
|
CAT5 UTP/STP: 50m / 160ft |
||
|
CAT6 UTP/STP: 60m / 200ft |
||
|
Power Supply |
DC12V/1A |
|
|
Power Consumption |
2.5W (Tx and Rx) |
|
|
Operating Temperature |
-10°C ~ 60°C / 14°F ~ 140°F |
|
|
Storage Temperature |
-30°C ~ 70°C / -22°F ~158°F |
|
|
Dimensions (L*W*H) |
||
Ordering Information
|
Part No |
Description of product |
|
LNK-DTS050-T |
SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter; |
|
LNK-DTS050-R |
SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver |
